Product Name

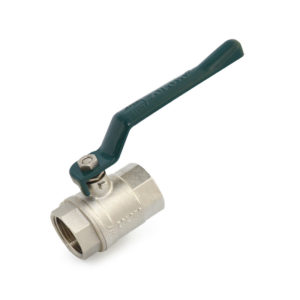

Forged Brass Ball Valve (Screwed)
Article Code
1008B
Forged Brass Ball Valve (Screwed)
Salient Features
- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Full Bore, Two Piece Design.
- Quarter Turn, Lever Operated.
- Provided with Forged Brass Hard Chrome Plated Ball.
- Premium Quality PTFE Gland Packing and Seating.
- Chrome Finish.
Test Pressure (Hydrostatic) :
Shell : 25 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 220°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- Full Bore, Two Piece Design.
- Quarter Turn, Lever Operated.
- Provided with Forged Brass Hard Chrome Plated Ball.
- Premium Quality PTFE Gland Packing and Seating.
- Chrome Finish.
Test Pressure (Hydrostatic) :
Shell : 25 kg/cm²g (350 psig)
Seat : 16 kg/cm²g (225 psig)
Maximum Working Temperature : 220°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Body | Forged Brass | IS 6912 Gr. FLB | 1 |
| 2 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 3 | Ball | Forged Brass (Hard Chrome Plated) | IS 6912 Gr. FLB | 1 |
| 4 | Body Seat Ring | PTFE | – – – | 2 |
| 5 | Thrust Washer | PTFE | – – – | 1 |
| 6 | Gland Packing | PTFE | – – – | |
| 7 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 8 | Gland | Forged Brass | – – – | 1 |
| 9 | Lever | Aluminium Alloy / Mild Steel | – – – | 1 |
| 10 | Nut | Brass (Chrome Plated) | – – – | 1 |
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Body | Forged Brass | IS 6912 Gr. FLB | 1 |
| 2 | Bonnet | Forged Brass | IS 6912 Gr. FLB | 1 |
| 3 | Ball | Forged Brass (Hard Chrome Plated) | IS 6912 Gr. FLB | 1 |
| 4 | Body Seat Ring | PTFE | – – – | 2 |
| 5 | Thrust Washer | PTFE | – – – | 1 |
| 6 | Gland Packing | PTFE | – – – | |
| 7 | Stem | Forged Brass | IS 6912 Gr. FLB | 1 |
| 8 | Gland | Forged Brass | – – – | 1 |
| 9 | Lever | Aluminium Alloy / Mild Steel | – – – | 1 |
| 10 | Nut | Brass (Chrome Plated) | – – – | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B | C ~ | D ~ |
|---|---|---|---|---|---|
| 1/4 | 8 | 47 | 1/4″ | 37 | 90 |
| 3/8 | 10 | 47 | 3/8″ | 37 | 90 |
| 1/2 | 15 | 50 | 1/2″ | 40 | 106 |
| 3/4 | 20 | 57 | 3/4″ | 43 | 132 |
| 1 | 25 | 67 | 1″ | 47 | 132 |
| 1 1/4 | 32 | 76 | 1 1/4″ | 62 | 166 |
| 1 1/2 | 40 | 87 | 1 1/2″ | 68 | 176 |
| 2 | 50 | 104 | 2″ | 80 | 216 |
| 2 1/2 | 65 | 139 | 2 1/2″ | 100 | 216 |
| 3 | 80 | 155 | 3″ | 110 | 280 |
| 4 | 100 | 177 | 4″ | 124 | 280 |
~ ±10
