Product Name
Bronze Thermodynamic Steam Trap (Screwed)
Article Code
1055
Bronze Thermodynamic Steam Trap (Screwed)
Salient Features
- Screwed Female Ends to BSPT.
- Provided with integral strainer for trouble free service.
- Stainless Steel (Type 304) Ø0.5 mm perforated sheet screen.
- Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Test Pressure (Hydrostatic) :
Shell : 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Maximum Working Temperature : 225°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Screwed Female Ends to BSPT.
- Provided with integral strainer for trouble free service.
- Stainless Steel (Type 304) Ø0.5 mm perforated sheet screen.
- Renewable 13% Cr. Stainless Steel (S.S 410) working parts.
Test Pressure (Hydrostatic) :
Shell : 35.15 kg/cm²g (500 psig)
Working Pressure (Steam) : 17.58 kg/cm²g (250 psig)
Maximum Working Temperature : 225°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Disc | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 2 | Cover | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 3 | Body | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
| 4 | Screen (Ø0.5 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 5 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 6 | Plug | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 7 | Seat | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 8 | Name Plate | Aluminium | – – – | 1 |
| P.No. | Name of Part | Material of Construction | Specification | Quantity |
|---|---|---|---|---|
| 1 | Disc | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 2 | Cover | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 3 | Body | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
| 4 | Screen (Ø0.5 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 5 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 6 | Plug | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 7 | Seat | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 8 | Name Plate | Aluminium | – – – | 1 |

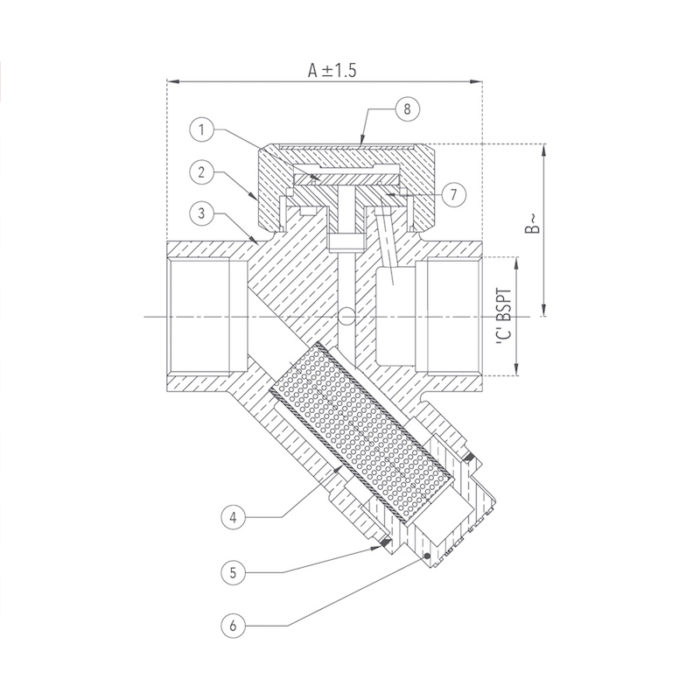

Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B ~ | C |
|---|---|---|---|---|
| 1/2 | 15 | 78 | 52 | 1/2″ |
| 3/4 | 20 | 96 | 52 | 3/4″ |
| 1 | 25 | 120 | 63 | 1″ |
~ ±10
