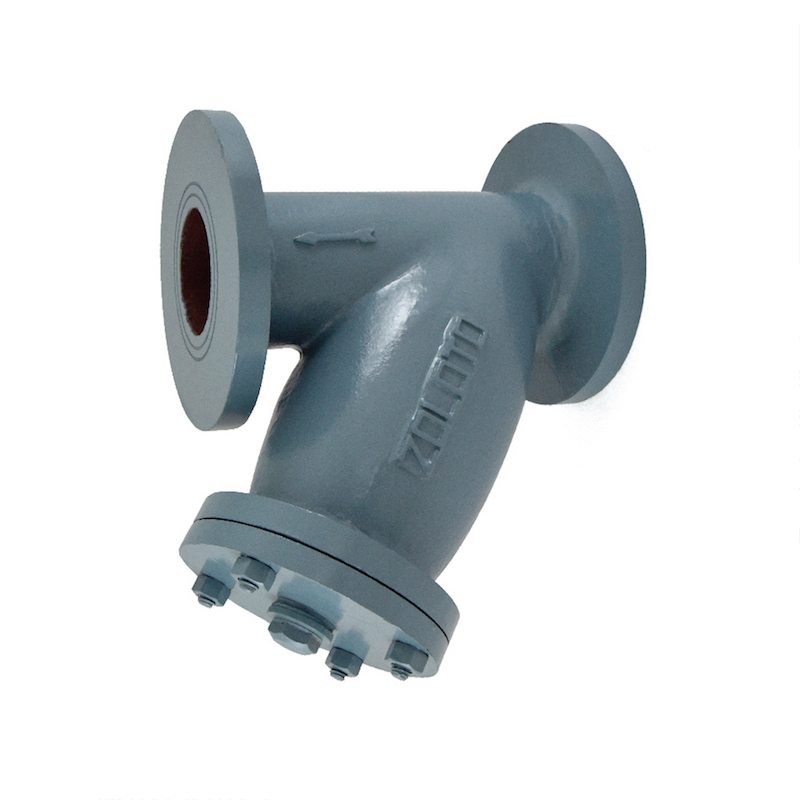

Cast Iron Y-Type Strainer (Flanged)
Article Code
1070
Cast Iron Y-Type Strainer (Flanged)
Salient Features
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø1 mm Perforation) is guided in body and cover.
- Drain Plug is provided to remove the accumulated foreign particles.
- Fine finish and smooth contours to minimize pressure drop inside the strainer.
- Large screening area makes the strainer extremely efficient in performance.
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Working Pressure (Steam) : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 220°C
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø1 mm Perforation) is guided in body and cover.
- Drain Plug is provided to remove the accumulated foreign particles.
- Fine finish and smooth contours to minimize pressure drop inside the strainer.
- Large screening area makes the strainer extremely efficient in performance.
Test Pressure (Hydrostatic) :
Shell : 21.10 kg/cm²g (300 psig)
Working Pressure (Steam) : 10.55 kg/cm²g (150 psig)
Maximum Working Temperature : 220°C
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IBR 86-93 Gr. A | 1 |
| 2 | Screen (Ø1 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 3 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 4 | Cover | Cast Iron | IBR 86-93 Gr. A | 1 |
| 5 | Nuts | Carbon Steel | IS 1367 | As Reqd. |
| 6 | Studs | Carbon Steel | IS 1367 | As Reqd. |
| 7 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 8 | Plug | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IBR 86-93 Gr. A | 1 |
| 2 | Screen (Ø1 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 3 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 4 | Cover | Cast Iron | IBR 86-93 Gr. A | 1 |
| 5 | Nuts | Carbon Steel | IS 1367 | As Reqd. |
| 6 | Studs | Carbon Steel | IS 1367 | As Reqd. |
| 7 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 8 | Plug | Bronze | IBR 282 (a) (iv) Gr. B | 1 |
Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±1.5 | B ~ |
|---|---|---|---|
| 1/2 | 15 | 136 | 87 |
| 3/4 | 20 | 140 | 88 |
| 1 | 25 | 162 | 112 |
| 1 1/4 | 32 | 185 | 135 |
| 1 1/2 | 40 | 206 | 152 |
| 2 | 50 | 210 | 205 |
| 2 1/2 | 65 | 248 | 250 |
| 3 | 80 | 270 | 268 |
| 4 | 100 | 381 | 290 |
~ ±10
