Cast Iron Y-Type Strainer, PN 16 (Flanged)
Article Code
1084A
Cast Iron Y-Type Strainer, PN 16 (Flanged)
Salient Features
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø3 mm Perforation) is guided in body and cover.
- Large screening area makes the strainer efficient in performance.
- Minimum pressure drop inside the body due to streamlined body contours.
Test Pressure (Hydrostatic) :
Shell : 24 kg/cm²g (340 psig)
Maximum Working Pressure : 16 kg/cm²g (225 psig)
| Suitable For |
|---|
|
Steam |
|
Water |
|
Oil |
|
Air |
|
Gases |
Salient Features
- Flanged Ends to BS 10 Table ‘F’.
- Stainless Steel (S.S 304) perforated sheet screen (Ø3 mm Perforation) is guided in body and cover.
- Large screening area makes the strainer efficient in performance.
- Minimum pressure drop inside the body due to streamlined body contours.
Test Pressure (Hydrostatic) :
Shell : 24 kg/cm²g (340 psig)
Maximum Working Pressure : 16 kg/cm²g (225 psig)
Suitable For
| Steam | Water | Oil | Air | Gases |
|---|---|---|---|---|
Materials
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 2 | Screen (Ø3 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 3 | Gasket | Rubber | IS 638 Type B | 1 |
| 4 | Cover | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 5 | Nuts | Carbon Steel | – – – | As Reqd. |
| 6 | Studs | Carbon Steel | – – – | As Reqd. |
| 7 | Gasket | Rubber | IS 638 Type B | 1 |
| 8 | Drain Plug | Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB 2 | 1 |
| P.No. | Name of Part | Material of Construction | Specification | Qty. |
|---|---|---|---|---|
| 1 | Body | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 2 | Screen (Ø3 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 3 | Gasket | Rubber | IS 638 Type B | 1 |
| 4 | Cover | Cast Iron | IS 210 Gr. FG 200 | 1 |
| 5 | Nuts | Carbon Steel | – – – | As Reqd. |
| 6 | Studs | Carbon Steel | – – – | As Reqd. |
| 7 | Gasket | Rubber | IS 638 Type B | 1 |
| 8 | Drain Plug | Brass / Bronze | IS 6912 Gr. FLB / IS 318 Gr. LTB 2 | 1 |

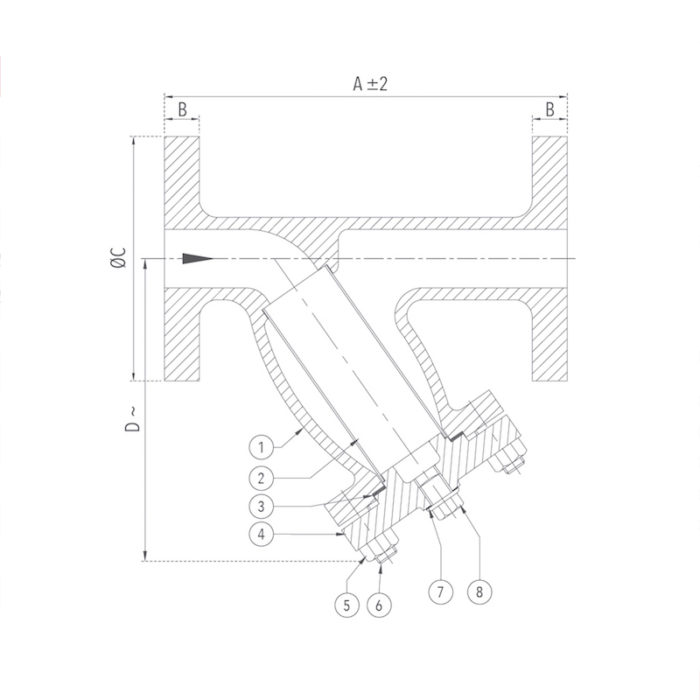

Sizes / Dimensions
| Size (Inches) | Size (mm) | A ±2 | B +3 | ØC +3 | D ~ |
|---|---|---|---|---|---|
| 1 1/2 | 40 | 165 | 16 | 139.7 | 152 |
| 2 | 50 | 180 | 19 | 165.1 | 169 |
| 2 1/2 | 65 | 206 | 19 | 184.2 | 180 |
| 3 | 80 | 260 | 19 | 203.2 | 242 |
| 4 | 100 | 295 | 22.2 | 228.6 | 267 |
| 5 | 125 | 385 | 25.4 | 279.4 | 320 |
| 6 | 150 | 385 | 25.4 | 304.8 | 331 |
| 8 | 200 | 525 | 28.6 | 368.3 | 434 |
| 10 | 250 | 700 | 28.6 | 431.8 | 533 |
~ ±10
Note : Strainers are also available with Magnet at a nominal extra cost.
